DEKO GV
- Max Height (mm)
- >5000
- Thickness (mm)
- 92-144
- Acoustics
- 39-49
- Fire Rating
- Up to EI60 Sprinklered
- Structure
- Severe
- Weight (Kg/m^2)
- 40-55
- Blinds
- Yes
- Manifestation
- Yes
Double glazed partition with impressive acoustic performance
Double glazed screen providing unparralled levels of stability and performance due to unique engineered framework and profiles.
With glass fitted flush on the screen surface, Deko GV is particuarly suited to commercial, health care and educational interiors - where stability and ease of maintenance are key requirements.
The unique aluminium door frame detail can accomodate a wide selection of door, including: Double glazed, Single glazed, Solid and Veneer.
Applied graphics or integral blinds - either manual or automatic - are available to enhance privacy.
- 100% Relocatable
- 100% Recyclable
- High Stability
- Cost Effective

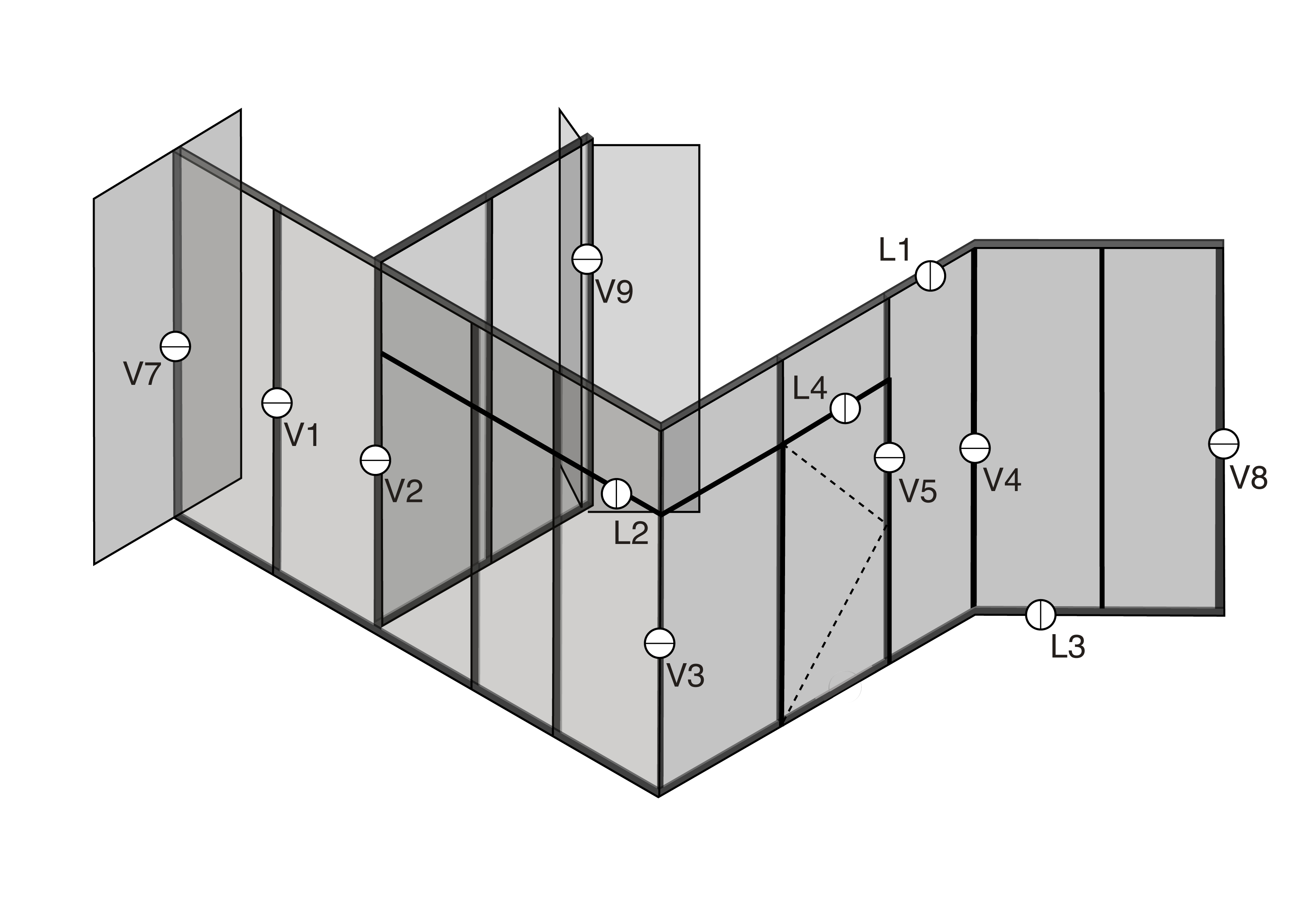

Detail of Deko GV
To place an order or make an enquiry
| PRODUCT TYPE | CONNECTION TYPE | FIRE RESISTANCE | SOUND INSULATION | OVERALL THICKNESS | GLASS THICKNESS | WEIGHT | |
|---|---|---|---|---|---|---|---|
| DEKO GV 1090 | Profile | Unclassified | 39-44 dB | 92 mm | 4+6 mm | 20 - 35 kg/m² | View Details |
| DEKO GV 1090 | Profile | F 30 | 39 dB | 92 mm | 4+7 mm | 30 kg/m² | View Details |
| DEKO GV 1290 | Profile | Unclassified | 39-49 dB | 118mm | 4+6 mm | 25 - 45 kg/m² | View Details |
| DEKO GV 1290 | Profile | F 30 | 39 dB | 118 mm | 4+7 mm | 30 kg/m² | View Details |
| DEKO GV 1490 | Profile | Unclassified | 39-44 dB | 144 mm | 4+6 mm | 25 - 35 kg/m² | View Details |
